ALPINE 4 Channels Power Amplifier PDX-F4【Japan Domestic genuine products】

Price: [price_with_discount]
(as of [price_update_date] - Details)

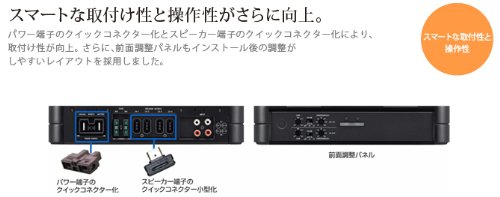

[ad_1] Product Features ★ 4-channel digital power amplifier that allows high power playback and clear ◆ Compact, low-current digital amplifier that supports a wide range of musical genres. ◆ Wide range improvement / S / N ratio / distortion ratio compared to conventional products. Reproduces high natural power and clear, faithful sound. ◆ The power connector and the speaker terminal are fast connectors, which improves mounting. ◆ The front adjustment panel also adopts an easy-to-adjust layout after installation. Detailed ★ ★ Detailed Description By "Newsbridge" ★ ★ ※ ◆ 14.4 V Rated Power: ● Load 4 Ω (≤ 0.05% THD + N) 100 W × 4 / ● Load 2 Ω (≤ 0.05% THD + N) 100 W × 4 / ◆ Bridge connection 4 Ω load (≤ 1% THD + N) 200 W × 2 / ◆ Maximum power: MAX 900 W (TOTAL)
◆ S / N ratio (weighted IHF A) / 4 Ω load): 115 dBA / ◆ Input impedance: 10 kΩ / ◆ Frequency response: 5 Hz to 100 kHz (0 dB to -3 dB) / ◆ Crossover frequency (variable / OFF / HPF / LPF selectable) / ● 1/2 hp 30 Hz to 400 Hz (-12 dB / oct.) / ● 3/4 hp 30 Hz to 400 Hz (-12 dB / oct.) / ◆ Input sensitivity ( 10 kΩ): 0.2 V to 4.0 V
◆ Operating Power Supply Power Range: 11 V to 16 V / ◆ Grounding System: Less Earth
◆ External Body Dimensions principal: approximately (W) 257.0 × (H) 50.8 × (D) 192.0 mm / ◆ Body weight: approximately 2.87 kg
Accessories: ● Self-tapping screw (M4 × 36) × 4 / ● Power plug × 1 / ● Speaker plug × 4 / ● Hex wrench (wide / small) 1 type / ● Instruction manual Japanese instructions
